Description
Summary

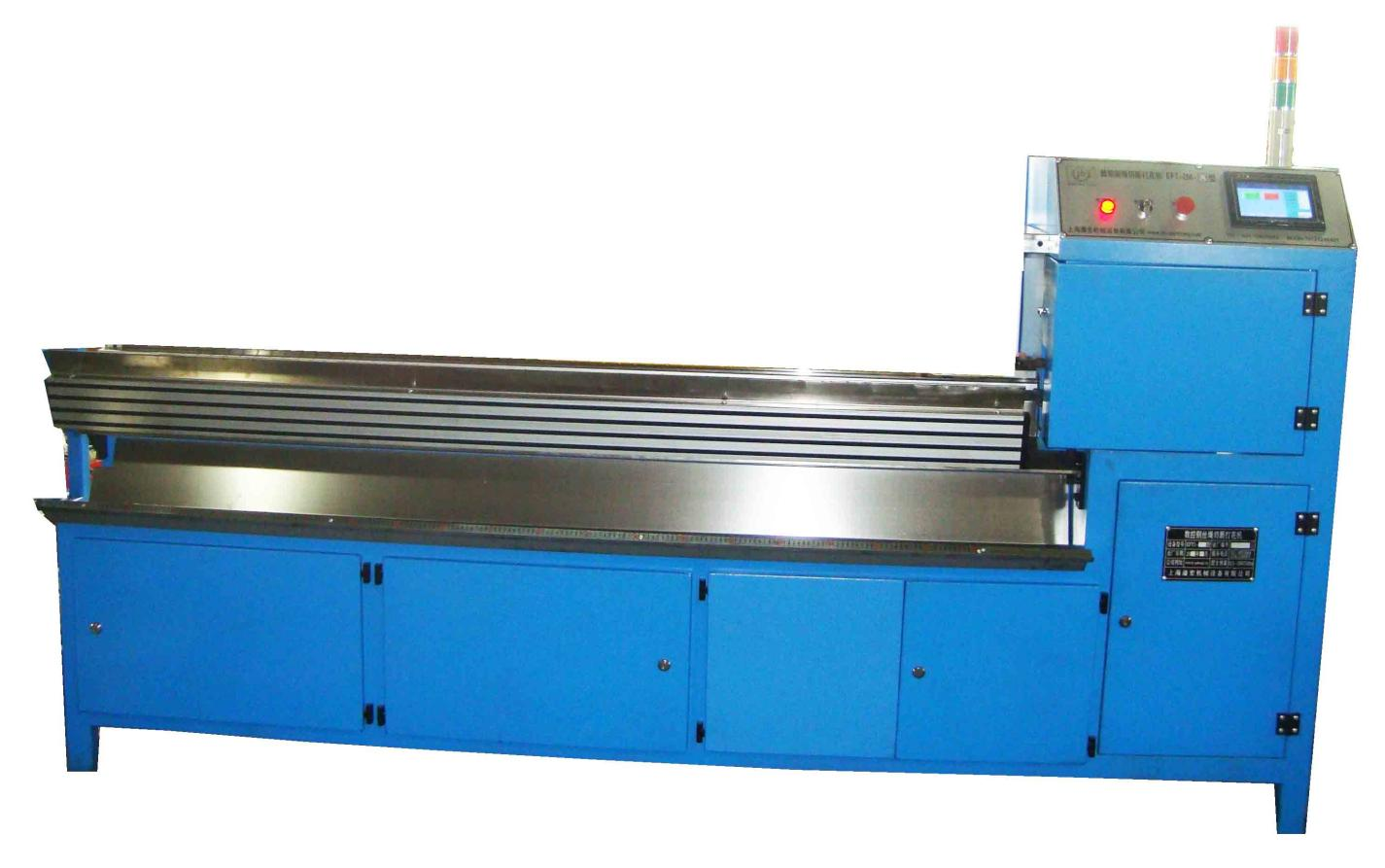

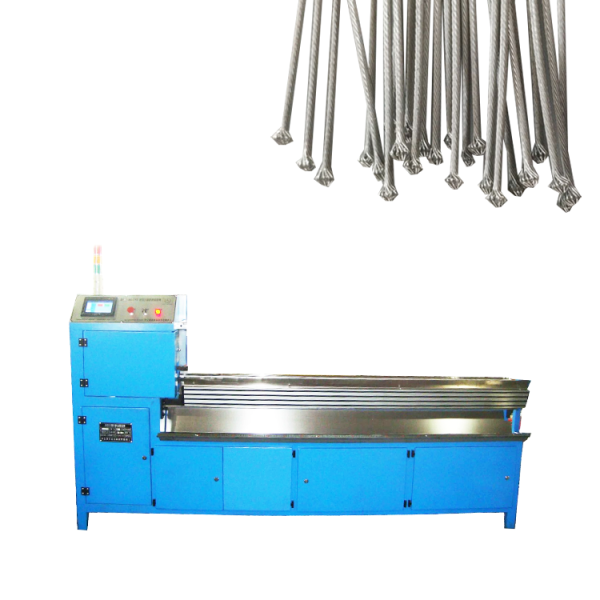

Automatic wire rope cutting patterning machine can cut and pattern continuously.According to the wire rope diameter, material and pattern, cut it to the required pattern. The pattern size can be adjusted. Manually adjust the screw knob to set the pattern size and adjust the required size. The color of the device is sky blue by default, and other colors need to be customized.
This machine has higher productivity. It applicant to Medical equipment, medical bed, massage bed cables; building decoration, lighting, office furniture, clothes drying rack, display hangers, automobiles, motorcycles, bicycles, electric vehicles, baby cars and other vehicles with soft axes, shift lines, clutch lines, brake lines, transmission lines, brake lines ,sealing strip wire rope, sports equipment, fitness equipment, tennis net, volleyball net, basketball hoop, treadmill Aircraft, travel equipment.
Feature
- The control system is composed of servo motor, Taiwan 7-inch tablet touch computer, Taiwan DELTA servo motor controller and Taiwan FATEK PLC, which has the advantages of stable operation and low failure rate.
- This machine has the advantages of broken steel rope, stuck steel rope and no steel rope, which will stop automatically and give an alarm. If there is no air pressure or insufficient pressure, it will stop automatically and give an alarm!
- It can be set to the function:

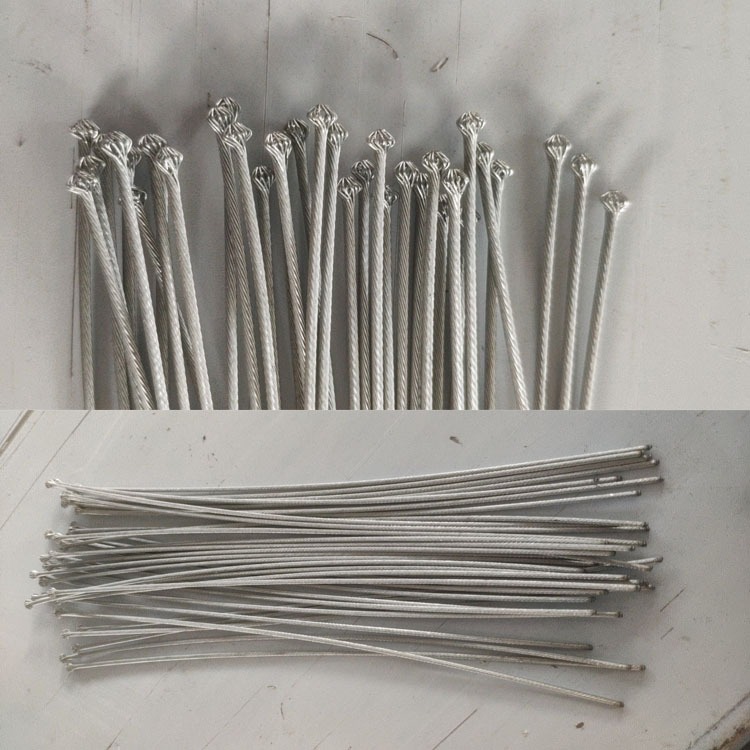

①Cutting ②Fusing ③ Cutting and Patterning ④ Fusin and Patterning ⑤ Fusing, Cutting and Patterning.
Configuration
No. | Parameter | Data |
1 | Wire rope diameter | Φ1.0-3.0mm （customized） |
2 | Cutting speed | 26pcs/min (1m) |
3 | Motor | Delta Servo motor |
4 | Pressure | 0.6-0.8kg |
5 | Power | 3000W |
6 | Volume (length * width * height) | 2500 *955 * 820mm |
7 | Weight | 500kg |
8 | Voltage | 380V 50Hz |
9 | Working temperature | Normal temperature |
