Description
Summary

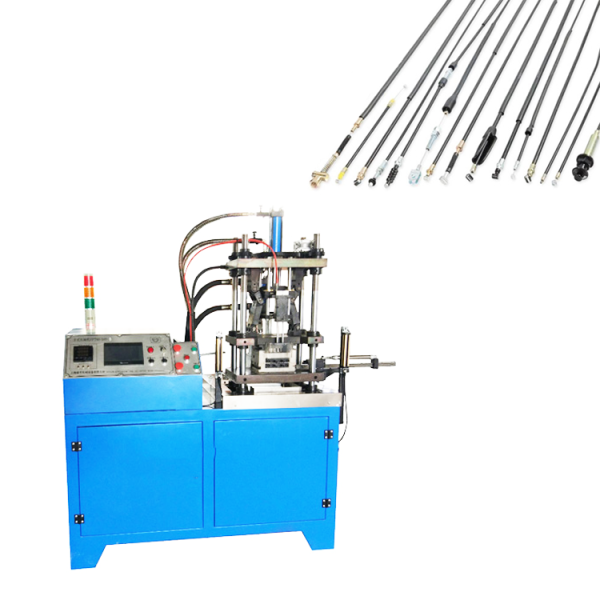

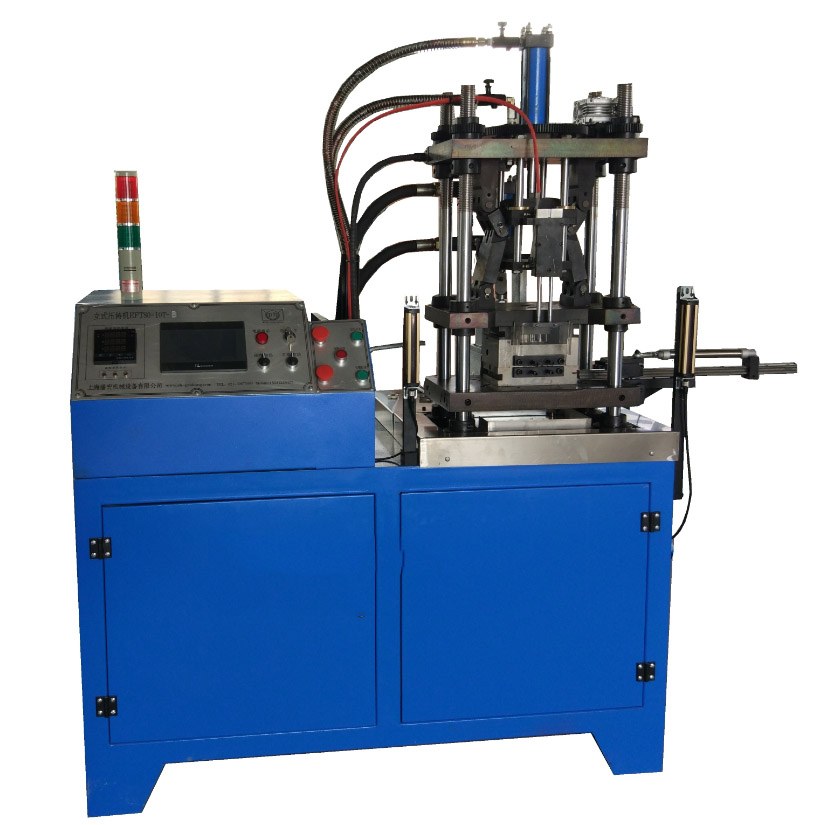

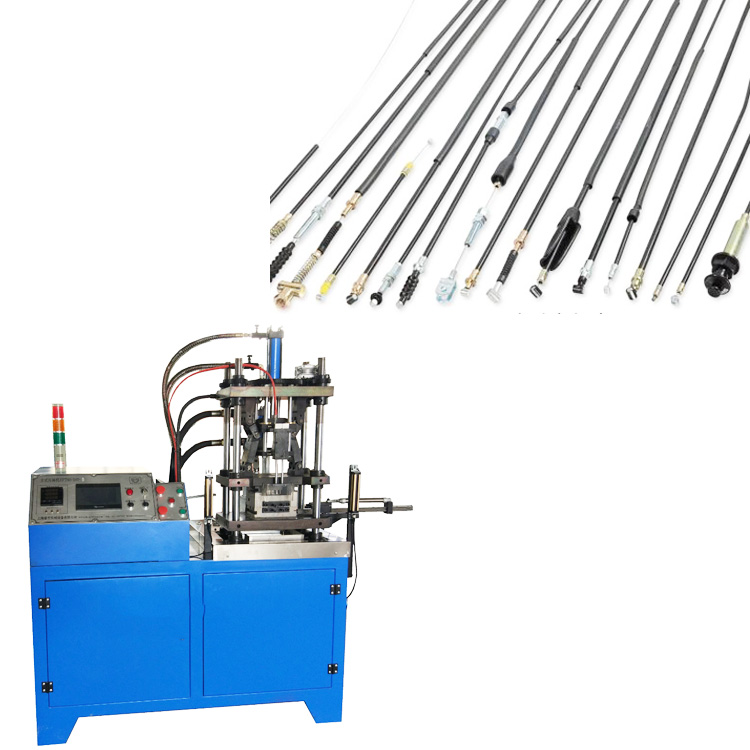

This vertical die casting machine is specially design for die casting lead or zinc alloy embedded mold such as lead fishing sinker etc.
Special automation control systems, security monitoring systems, energy-saving design which makes this die casting machine has high reliability, efficiency and automation. Its production of zinc alloy, lead alloy, tin alloy products, with the best surface quality, polishing, plating, painting, it has been widely used in manufacturing gear, electrical and electronic castings, auto parts and other fields.
The Features of this die casting machine
- The system adopts imported Japanese Mitsubishi or Yonghong of Taiwan;
- Detection of die band gap to prevent spraying;
- The heating tube is heated through the outside of the crucible;
- PID temperature control mode, high temperature control accuracy;
- The equipment has the function of weekly cycle setting.
Main technical data
NO. | Name | Parameters |
1 | Locking force | 100KN |
2 | Wire diameter range | 1.0-3.5 mm |
3 | Max die casting speed | 10/min |
4 | Power | 5.5kw |
5 | Production | 1.2-1.6w pcs/day |
6 | Machine weight | 1000Kg |
7 | Machine Dimensions | 1450*1000*1720cm |
