Description
Summary

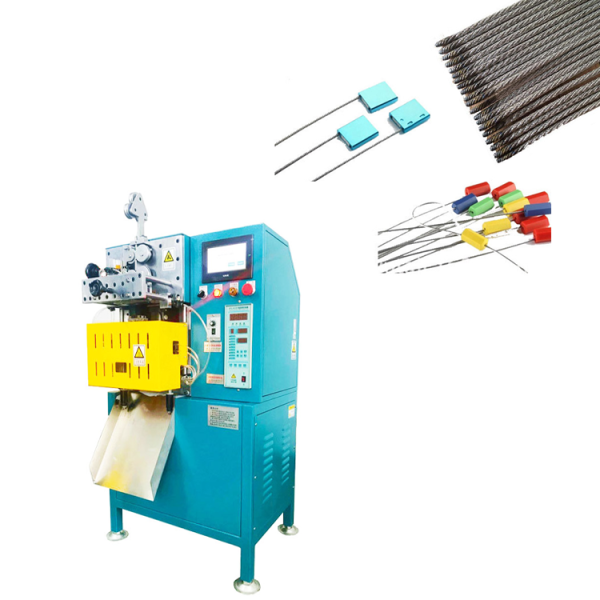

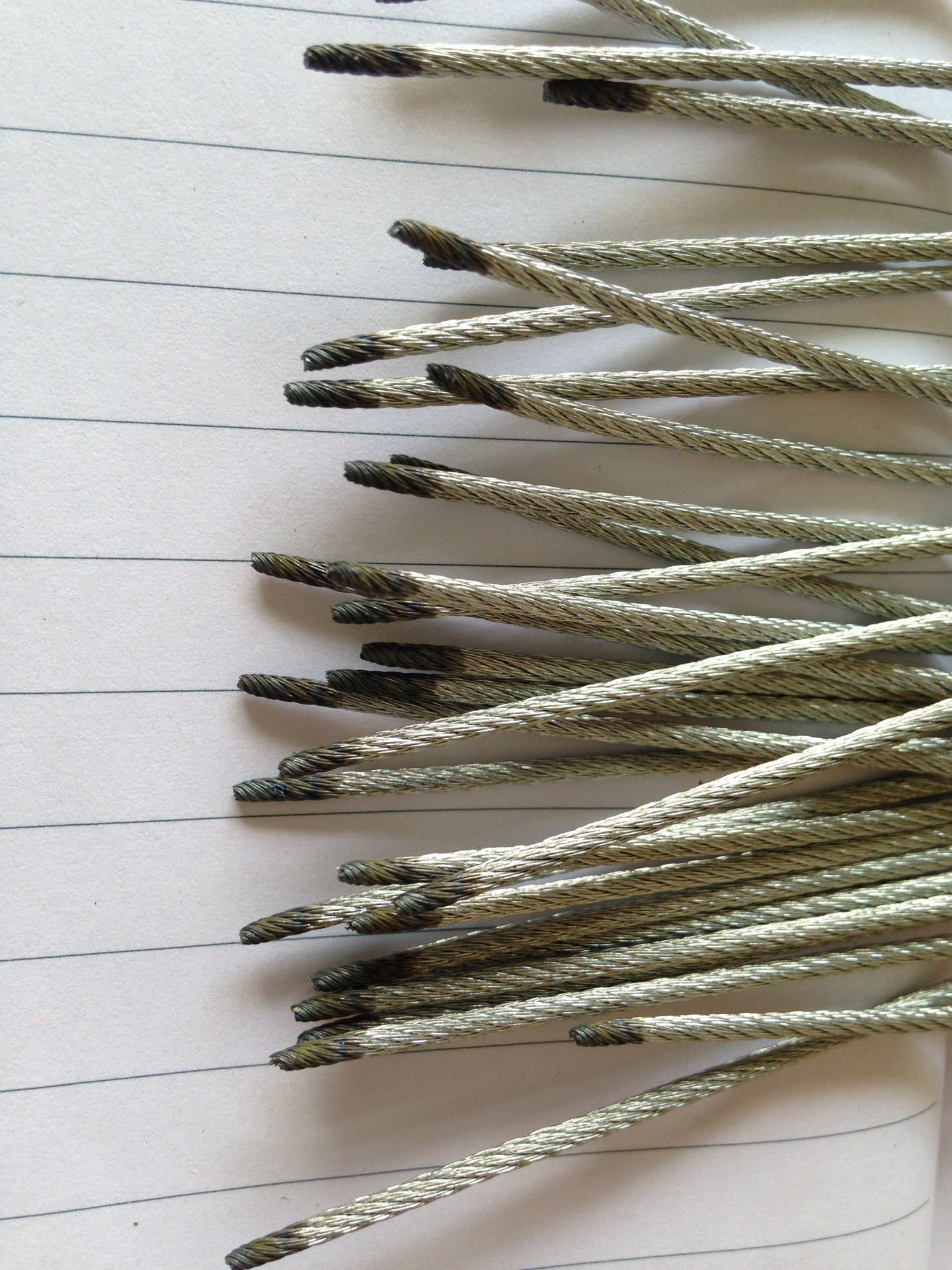

The machine is special designed for tapered head wire rope cutting with melting device. The cutting end will be tight with cone shape.
Configuration and performance
Model: RD-300
Feeding device: step motor control
Melting device: electric resistance welding, work current adjusted by controller.
The clamping system and drawing system is driven by pneumatic device.
The machine is whole controlled by the PLC system with touch screen
Specification
Power system: | 220V/ 380V, 50Hz, 3Phase |
Pressure air source: | 4kg pressure air supply. |

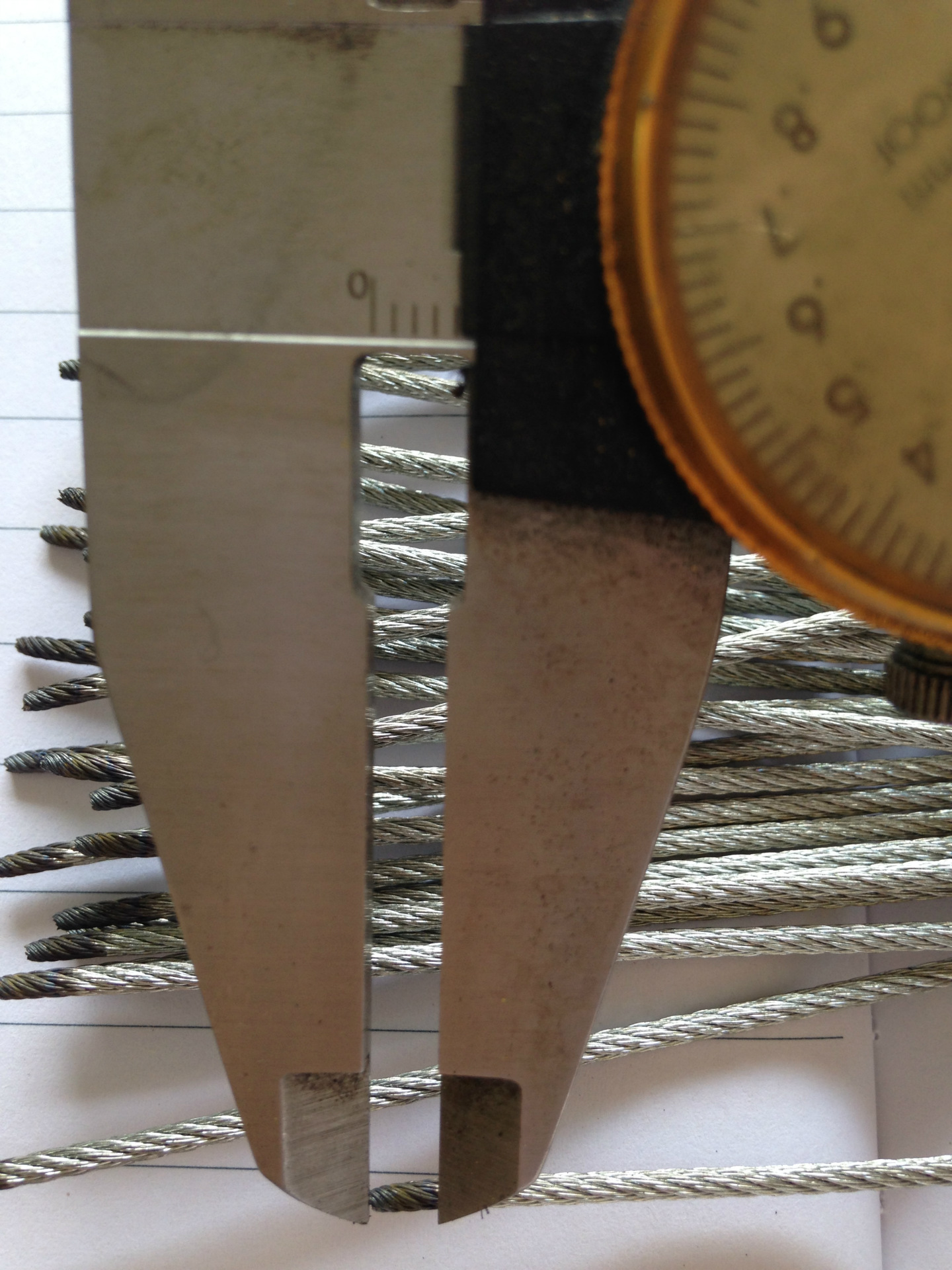

Cable diameter: | 5.0-6.5mm |
Length: | =< 350mm |
Length tolerance: | +-1.5mm |
Speed: | =>500-700ppm |
Wire rope cut: | Taper |
Incoming line voltage: | 230 volt/3phase AC |
