Description
Summary

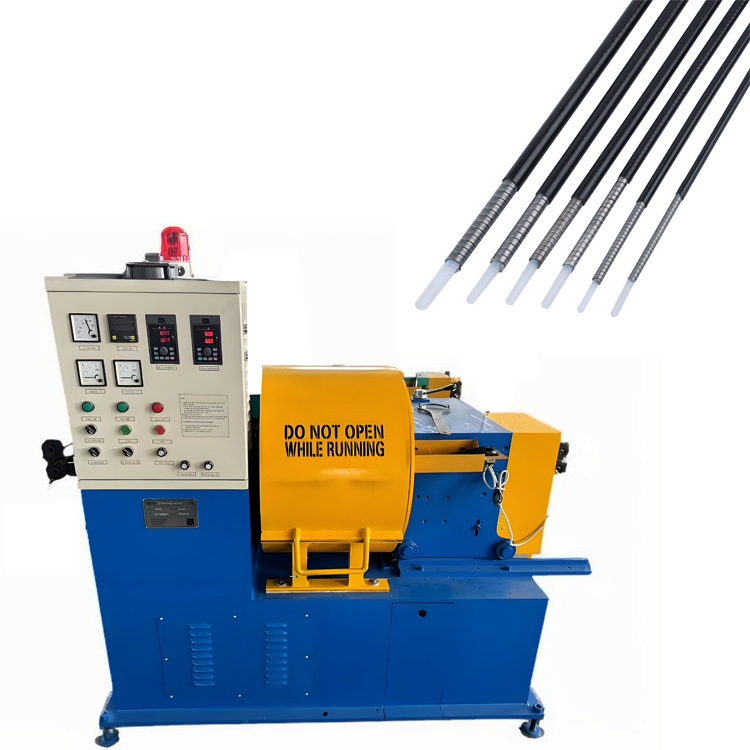

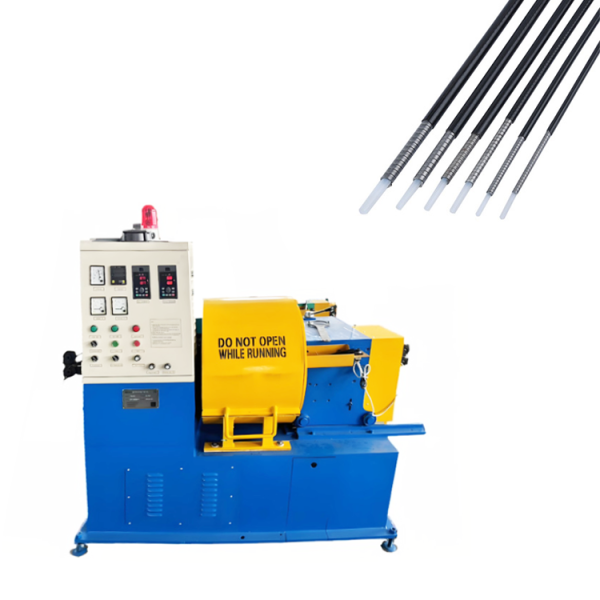

The outer casing machine is used to produce flexible hose continuously. The outer casing hose is widely used for control cable, such as brake cable, clutch cable, throttle wire, etc. The inner plastic hose can be optional for different purpose.
Feature
- Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment.
- Wire and inner hose feeding device has function option as “Manual”and “Automatic”
- Equipped with auto alarm and emergency stop function if no wire / inner hose feeding

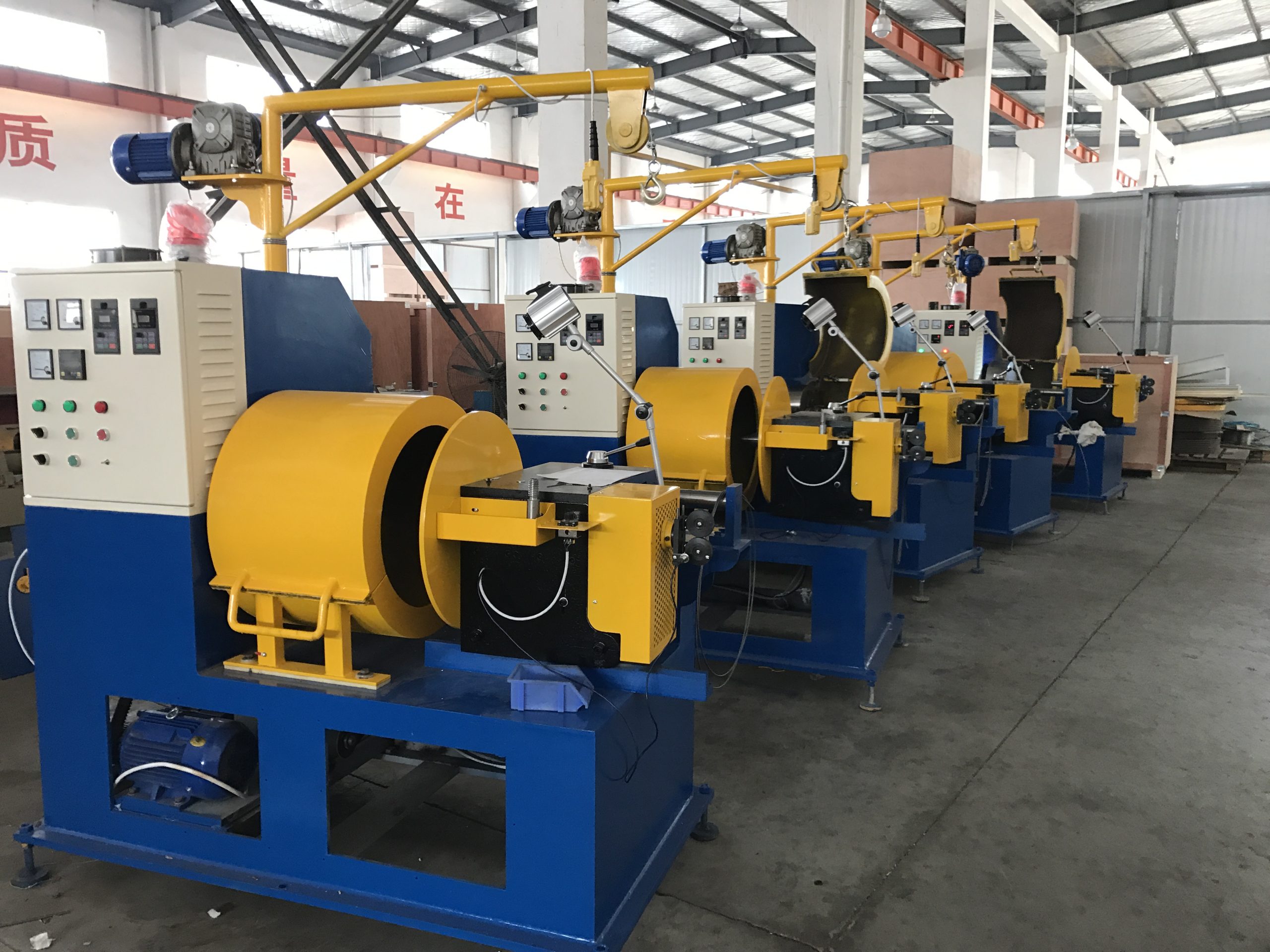

- Equipped with electric crane for wire bobbin lifting up and down.
Main technical data
No. | Description | Data |
1 | Model | FX-I |
2 | Flexible hose diameter | OD 4-6mm |
3 | Forming speed | 2.2m/min for hose |
4 | Crane capacity | 120kg |
5 | Motor power | 3.0kw, 0-50Hz, 3Phase. 1420rpm |
6 | Dimension | 2200x900x2000mm |
7 | Weight | 1300kg |
