Description
Summary

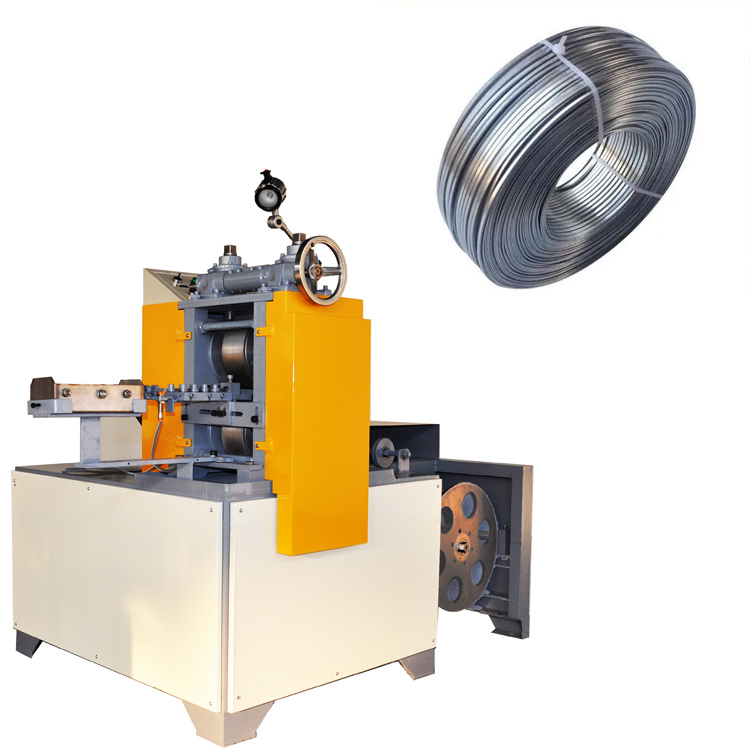

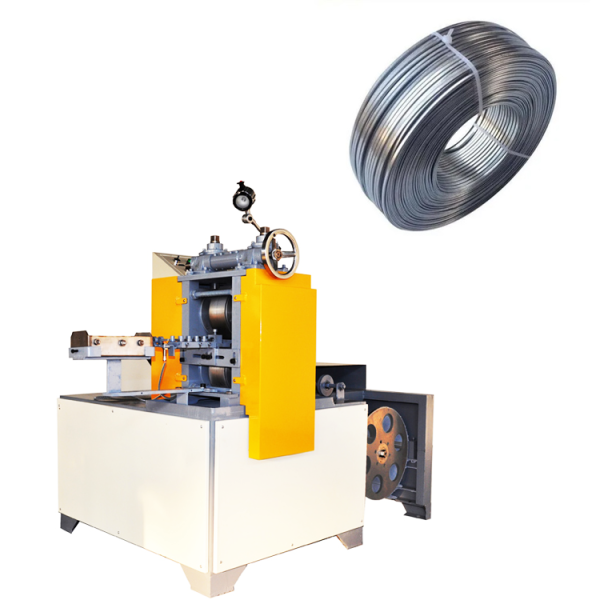

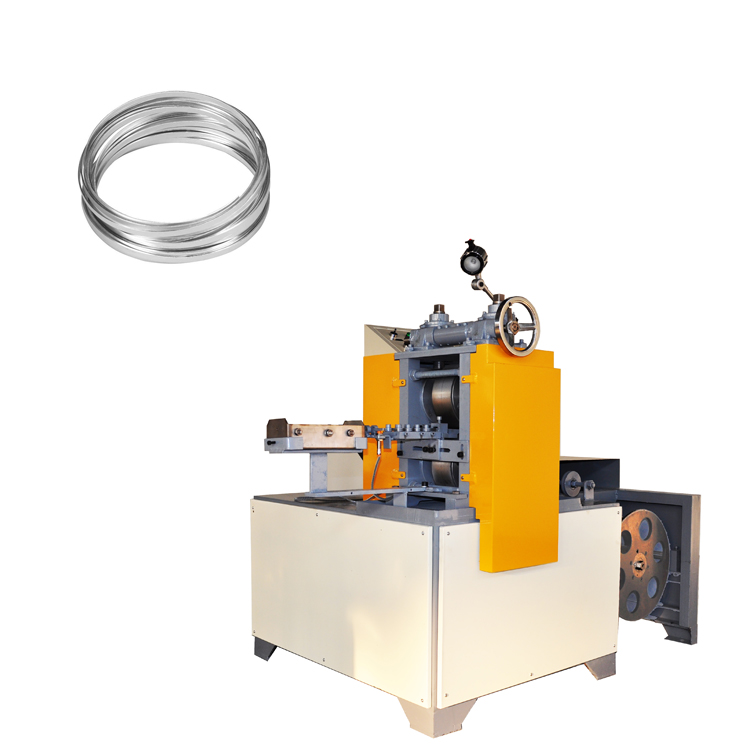

The wire flattening machine is used to flat steel wire into flat shape, which is suitable for outer casing hose purpose as raw material.
Feature
- Pressing roller is made from Cr12Mov, with heat treatment HRC≥59°
- Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment.
- Equipped with auto alarm and emergency stop function for wire feeding control
- Equipped with straightening device for wire feeding
- Equipped with water cooling system (Optional device).
Main technical data
No. | Description | Data |
1 | Model | WF-200 |
2 | Max. wire diameter | 1.7mm |
3 | Wire output speed | 1.2m/s above |
4 | Pressing roller diameter | 200mm |
5 | Wire flattening tolerance | ≤±0.01mm |
6 | Bobbin capacity | 110kg |
7 | Motor power | 3.0kw, 0-50Hz, 3Phase. |
